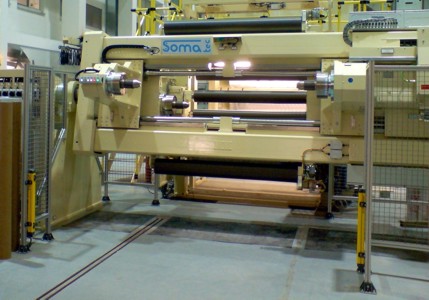

Automatic Turret Unwinder UW 1500 S
 |
CharacteristicsRoll diameter: max. 1.500 mm (60") Roll weight: max. 3.500 kgs (7700 lbs) Material width: max. 2.500 mm (98") Speed: max. 600 m/min (2000 fpm) Roll support shaftless starting at 102 mm (4“) core inner diameter Automated overlap splicing up to maximum production speed, alternatively in both unwinding directions |
The Automatic Turret Unwinder UW 1500 S is characterized by its very flexible concept. Besides the support of a high roll weight and a high unwinding speed the unwinder supports rolls with a wide width variation without the need of mechanical adaptors or similar. This is achieved by motor driven support arms, which are clamping the roll centered to the machine, able to steplessly compensate a difference in width up to 700 mm (27.5”).
Overview of the features
