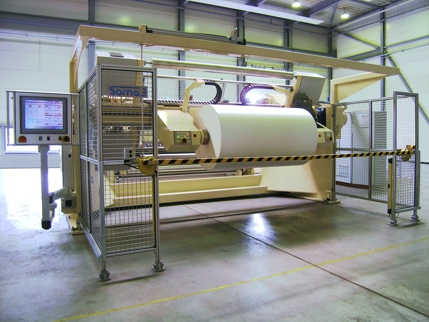

Automatic Turret Unwinder UW - S


Characteristics


Roll diameter:
max. 1.500 mm (60")

Roll weight:
max. 3.500 kgs (7700 lbs)

Material width:
max. 2.500 mm (98")

Speed:
max. 600 m/min (2000 fpm)

Roll support shaftless
starting at 102 mm (4“) core inner diameter

Automated overlap splicing
up to maximum production speed, alternatively in both unwinding directions


The Automatic Turret Unwinder UW - S is characterized by its very flexible concept. Besides the support of a high roll weight and a high unwinding speed the unwinder supports reels with a wide width variation without the need of mechanical adaptors or similar. This is achieved by motor driven support arms, which are clamping the reel centered to the machine, able to steplessly compensate a difference in width.



Video animation Turret Unwinder UW - S



This video will be loaded from Google YouTube.
Their privacy policy applies.



Overview of the features

Scheme lower splicing process
Splicing system in lower position


Splicing system
Splicing system


Scheme upper splicing process
Splicing system in upper position


Shaftless reel support
Shaftless roll support with motor driven support arms

Machine brochure for downloading


Brochure Turret Unwinders UW
Automatic Turret Unwinders UW
PDF (1400 KB)
