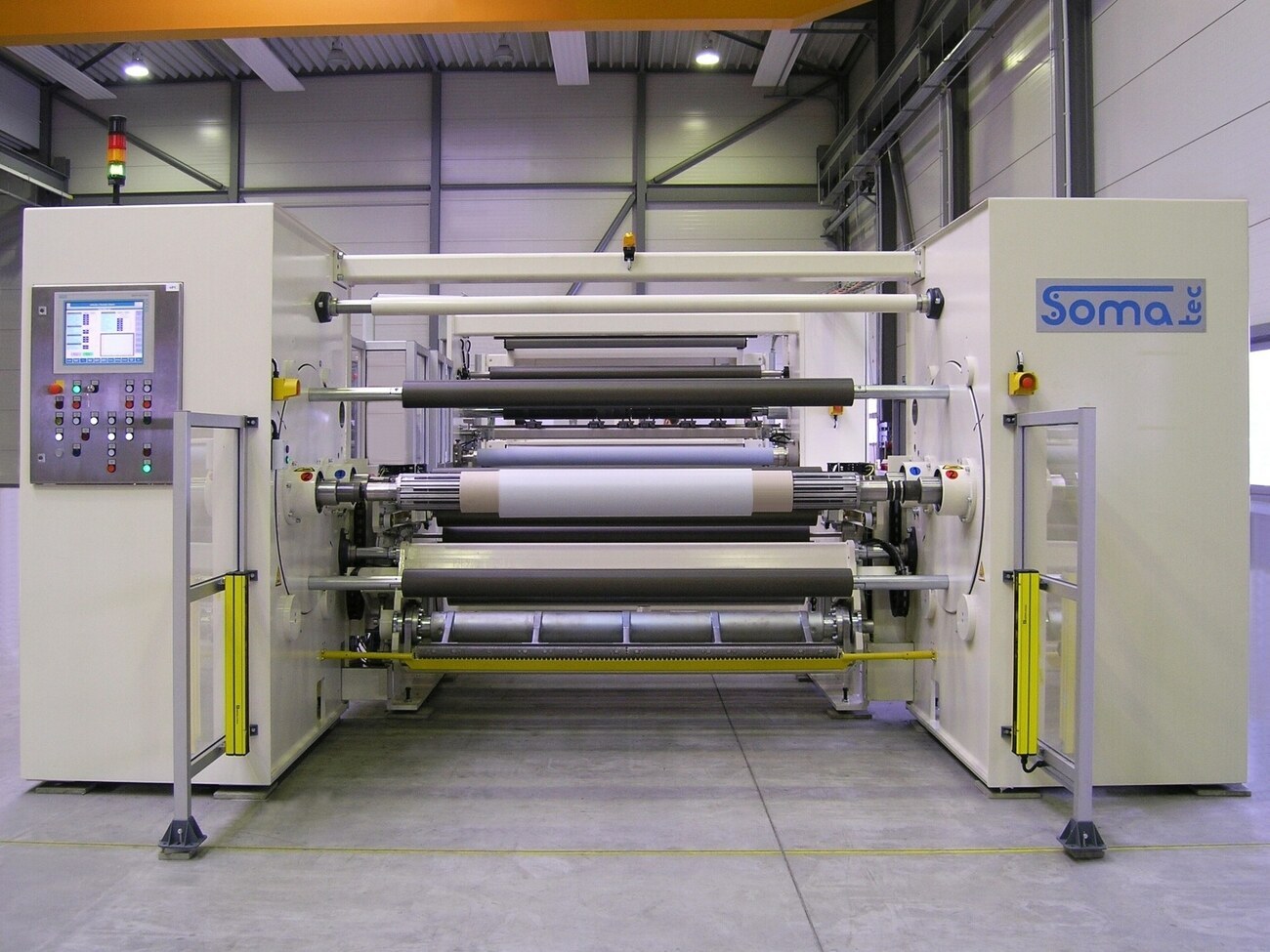

Automatic Turret Winder ATW - E

The inexpensive variant with winding shafts




The application range of this winder expands from printing lines to the paper production and paper converting industry, but is also perfectly suitable for other tasks, where flat webs have to be wound continuously onto winding shafts. Whether you want to integrate this winder into a new or existing line,it always will perfectly fit. No need to say that this machine concept can also be perfectly adapted to individual requirements. In this case our specialists are eager to develop innovative solutions based on your and their longtime know-how.

The basic machine can be upgrated with many interesting features.



Diverse equipment options

Für perfekte Wickelergebnisse:
  • Scissor cut or blade cut
  • Expansions shaft mode with friction option
  • Antistatic equipment
  • Driven Lay-on rolls
  • Optional contact or gap winding
  • Both winding directions possible
  • Reel support roller to achieve high roller weights with a small core diameter or with multiple slits


For high efficiency:
  • Edge trim suction or pull-roll
  • Chucks for steel core
  • Roll unloading cart with up to 25m driving range
  • Optional roll unloading forks
  • extern winding shaft extraction
  • Automatic roll change system TAC or NTC

Technical Data ATW-E



Roll diameter max. 1.500 mm
Roll weight with support roller: max. 3.500 kg
Material width 3.000 mm
Winding speed max. 350 m/min (NTC-System)
max. 600 m/min (TAC-System)
Core diameter 3“ ,4“ and 6“  or4“ steel core
Slitting system scissor cur, blade cut




Overview of the features



Automatic roll changing system NTC for a roll change without core preparation




Automatic roll changing system TAC for a roll change with core preparation




In-line edge trim and multiple slit




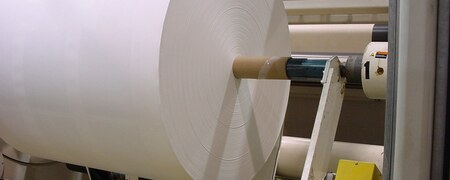

Reel support roller

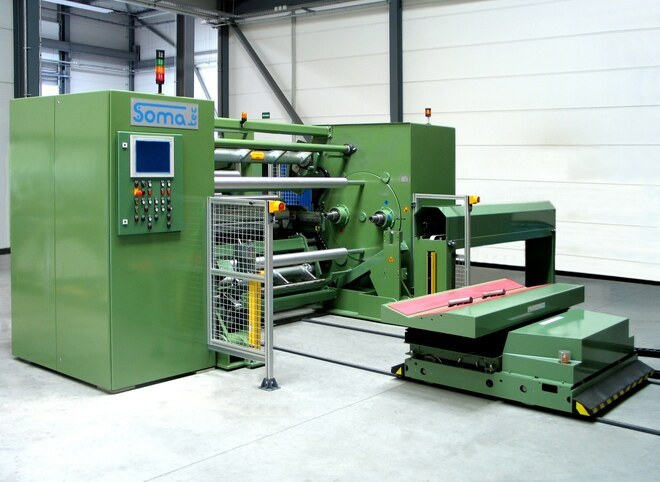

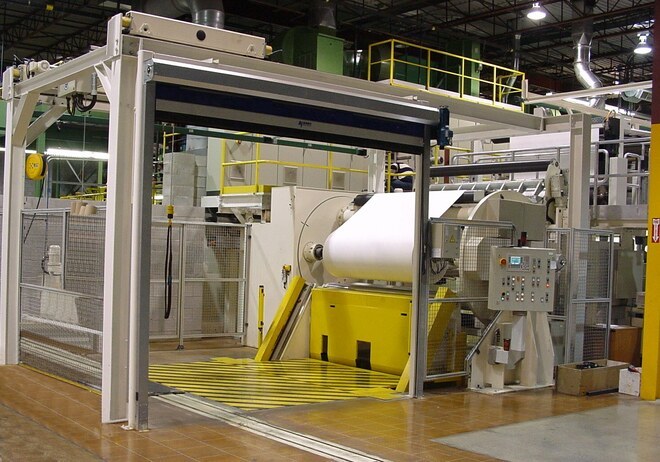

Automatic finished roll and winding shaft handling

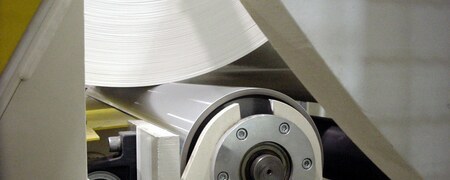

Driven Lay-on roller
