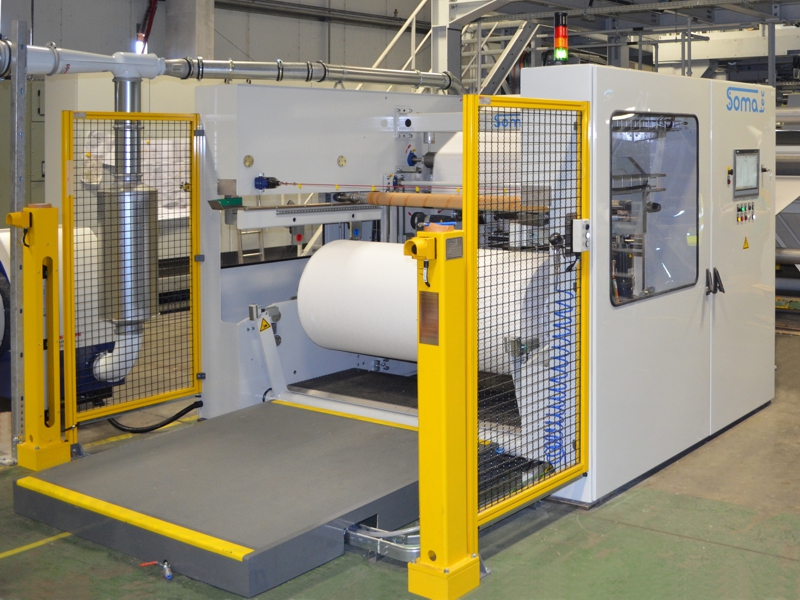

Automatic Surface Winder SW - E





Characteristics


Reel diameter:
max. 1500 mm (60")

Reel weight :
max. 1000 kg (2200 lbs)

Material width:
max. 2000 mm (79")

Speed:
max. 200 m/min (650 fpm)

Reel support on winding shafts
with minimum 76.2 mm (3“) diameter

Automatic reel change
at maximum production speed onto adhesive prepared cores

Contact roll arrangement
for contact winding mode


By the compact design and the concentration to the essential functions an economic automatic Surface Winder was created, which works in the basic version only with one drive, but fulfills all actual requirements for a modern and safe winder.

The Surface winder SW - E is characterized by the following advantages:

  • Automatic reel change at full production speed onto adhesive prepared cores
  • Optimal winding conditions by surface winding from the first to the last layer; thereby no telescoping at multiple web winding during reel change
  • Winding tension and contact tension selectable with taper modes
  • Compact design, thereby large winding diameters are reachable at smallest machine size



Video sequence Surface Winder SW - E



This video will be loaded from Google YouTube.
Their privacy policy applies.




This video will be loaded from Google YouTube.
Their privacy policy applies.



Overview of the details

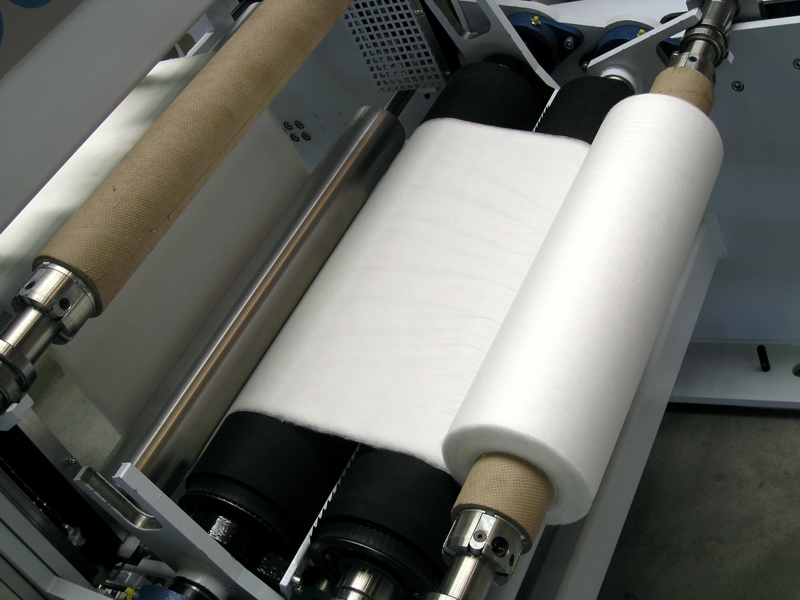

Winding process

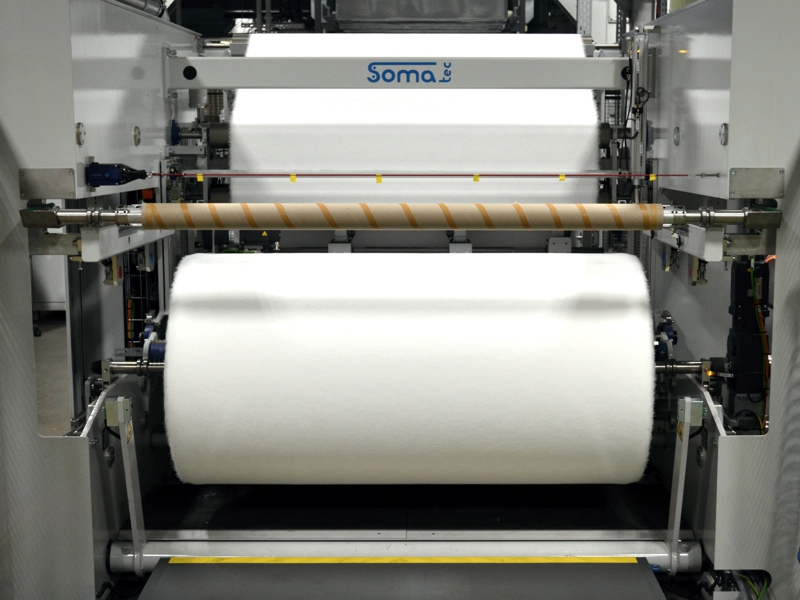

Winding shaft magazine above the winding slide



Machine brochure for downloading


Brochure Surface Winders SW
Surface Winders SW
PDF (797 KB)

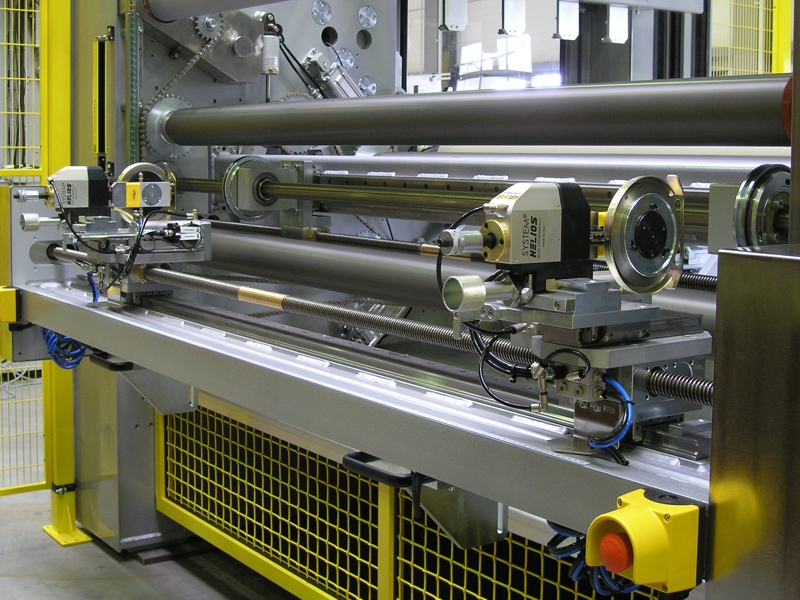

Slitting device

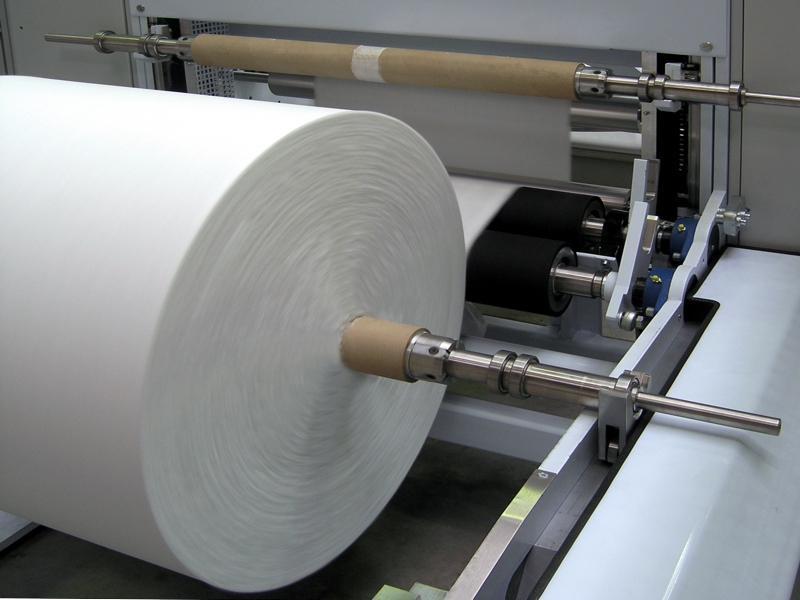

Reel change system
