Automatic Surface Winder SW - R  "Reelwinder"





Characteristics


Roll diameter:
max. 3.000 mm (118")

Roll weight :
max. 3.000 kg (6600 lbs)

Material width:
max. 3.000 mm (118")

Speed:
max. 500 m/min (1640 fpm)

Reel support on winding shafts
with minimum 152.4 mm (6“) diameter

Automatic reel change
at maximum production speed onto adhesive prepared cores

Contact roll arrangement
for permanent contact winding also during reel change

Center drive
for the support of the winding process

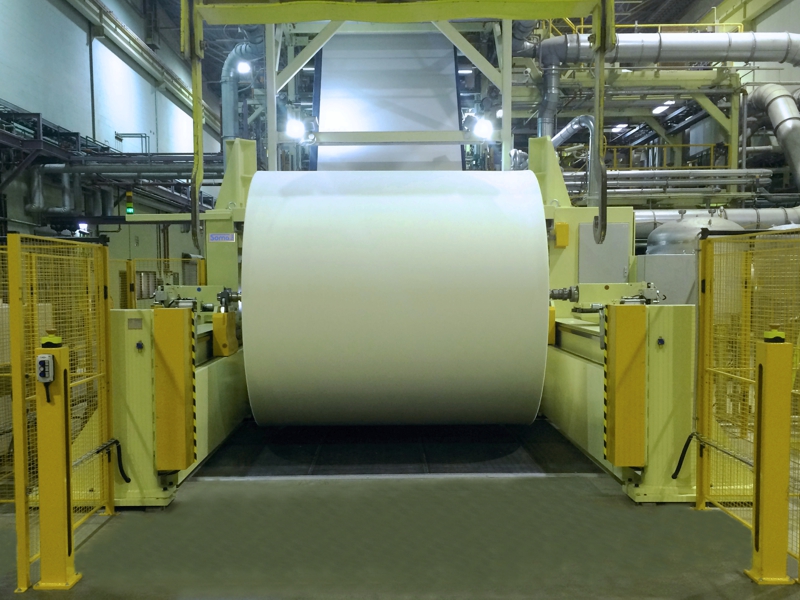

The "Reelwinder" is designed for winding of biggest reels - up to 3000 mm (118") - especially in nonwoven production lines.

The automatic reel change is done at full production speed. By the contact roll design a constant winding in contact winding mode is achived, also during reel change. Hereby the contact pressure is controlled permanently by a two-dimensional pressure control system. The additional center drive of each winding station supports the surface drive and ensures a smooth start of each new reel.

The Surface winder SW - R is characterized by the following advantages:

  • Biggest winding diameters are possible
  • Automatic reel change at full production speed onto adhesive prepared cores
  • Optimal winding conditions by controlled surface winding from the first to the last layer
  • Winding tension and contact tension selectable with taper modes
  • Winding shaft magazine and automatic winding shaft feeding




Overview of the details

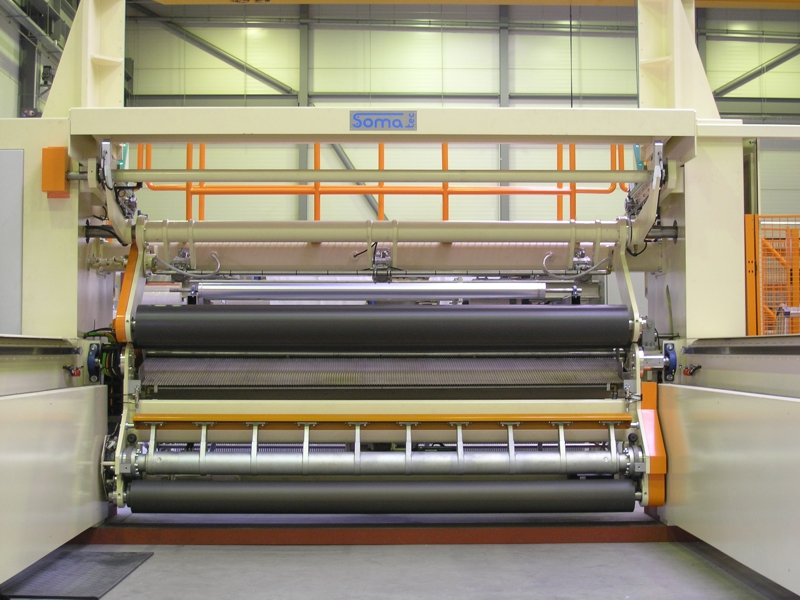

Reel change system

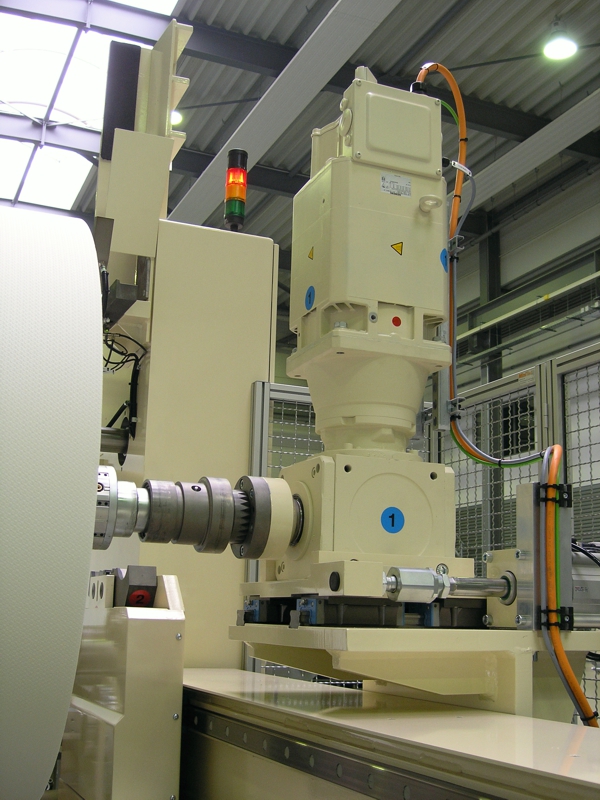

Center drive



Machine brochure for downloading


Brochure Surface Winders SW
Surface Winders SW
PDF (1863 KB)

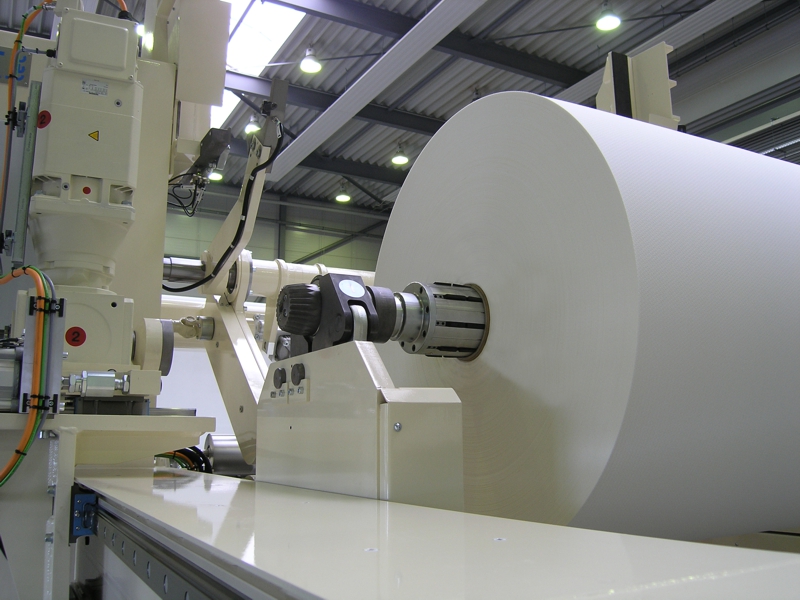

Winding slide

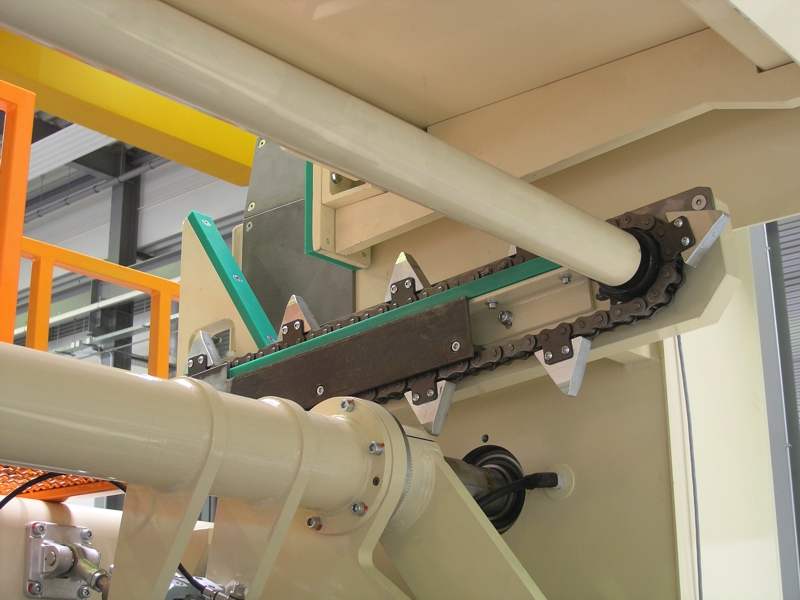

Winding shaft magazine
